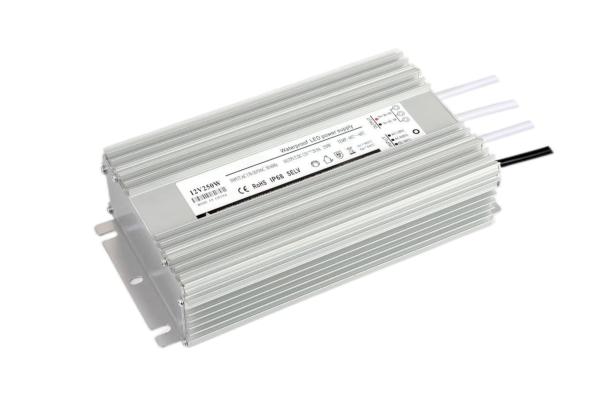

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Name: 12V24V36V48V Waterproof LED Power Supply 250W Output IP67 Rated Reliable Outdoor Lighting LED Driver
Brand: ANENpower
Price: 1 USD

Brand Name : ANENpower

Model Number : APL250W

Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Input : 100~277Vac, 50/60Hz

Output Power : 250W Max

Output Voltage : 12V/ 24V/ 36V /48V

Safety Approvals : UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA

Standard : EN/IEC 61347, UL 1310

Applicants : LED Lighting Advertising, LED Display, LED Strips, etc.

Warranty : 3~5 Years

Waterproof Grade : IP67 / IP68

Contact Now

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Our 12V/24V/36V/48V Waterproof LED Power Supply delivers a powerful 250W output, providing reliable and stable performance for outdoor lighting systems. With an IP67 waterproof rating, this LED driver is engineered to withstand the toughest environmental conditions, ensuring your lighting setup remains functional no matter the weather.

Designed for outdoor use, this LED power supply is fully protected against dust, water, and other elements, making it the perfect choice for gardens, street lights, industrial lighting, and more. Its IP67 rating guarantees long-term durability, providing peace of mind for your outdoor projects.

With flexible voltage options—12V, 24V, 36V, and 48V—this high-power driver is capable of handling demanding lighting applications. The 250W output ensures your LED lights operate efficiently, providing consistent illumination for large-scale outdoor installations.

MODEL DETAIL SPEC.		APL250W-12020883	APL250W-24010416	APL250W-36069444	APL250W-48052083
INPUT	Input Voltage:	100-240VAC/200-240VAC
	Input Frequency:	50/60Hz
	Inrush Current:	65A/230VAC at full load
	AC Current:	2.27A/115VAC 1.14A/230VAC
	Leakage Current:	＜0.25mA/240VAC
	Efficiency:	88%
OUTPUT	DC Voltage:	12V	24V	36V	48V
	Rated Current:	20.88A	10.42A	6.94A	5.21A
	Rated Power:	250W
	Voltage Tolerance:	±5.0%
	Ripple and Noise:	120mVp-p	240mVp-p	360mVp-p	480mVp-p
	Line Regulation:	±3%
	Load Regulation:	±5%
	Setup, Rise, Hold Up time:	1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL	Operating Temperature:	-20 ~ +50 (Refer to "Derating Curve")
	Storage Temp:	-40℃ ~ 85℃
	Storage Humidity:	20 ~ 95% RH
	Working Humidity:	20 ~ 95% RH non-condensing
PROTECTION	Over Load:	Above 105%-130% rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage:	12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temperature:	Shut down o/p voltage, re-power on to recover
SAFETY & EMC	Safety Regulations:	EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
	Withstand Voltage:	I/P-O/P:3.75KVAC
	Harmonic	EN61000-3-2 Class C EN61000-3-3
	EMI:	Compliance to EN55015
	EMS:	compliance to 61547:2009
OTHER	MTBF:	200,000 Hours Minimum at Full Load at 25℃ Ambient
	Size:	23012758mm
	Weight:	2600g / pcs
	Packaging:	5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver Images
