2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply

ANEN Enterprise Limited

2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply

Brand Name : ANENpower

Model Number : APM450

Certification : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Input Range : 100 ~ 240Vac, 50 / 60Hz

Power Range : 450W~550W

Certificates : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Application : Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.

MTBF : 100,000 Calculated Hours

Caze Size : 260L x 95W x 43H (mm)

Contact Now

2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply

Our Model NO. is APM450, a groundbreaking Universal Input 450W to 550W GaN Medical AC Adapter designed for unparalleled performance and safety in the medical equipment arena. Harnessing the revolutionary Gallium Nitride (GaN) technology, this adapter stands at the forefront of power conversion innovation, offering significantly enhanced efficiency, reduced size, and lighter weight compared to conventional adapters – features that are seldom seen in medical-grade power supplies.

The APM450 is meticulously engineered to comply with the stringent standards of IEC/EN60601-1, boasting an impressive 2 x MOPP (Means Of Patient Protection) rating. This ensures superior isolation and safety margins, critical for protecting patients and medical personnel from electrical hazards in even the most sensitive healthcare environments.

With its wide input voltage range, the APM450 is versatile enough to accommodate various power grids worldwide, making it a truly universal solution for medical devices. The integration of GaN semiconductors enables faster charging, lower heat dissipation, and an extended product lifespan, all while maintaining compact dimensions that facilitate seamless integration into space-constrained medical applications.

In an industry where reliability is paramount, the APM450 distinguishes itself as one of the few market players adopting cutting-edge GaN technology, marking a new benchmark for medical power adapters. It's not just an adapter; it's a commitment to advancing medical technology with smaller footprints, higher energy savings, and unwavering reliability.

Embrace the future of medical power solutions with the APM450 GaN Medical AC Adapter – where performance meets safety, efficiency leads the way, and innovation is at the heart of every watt delivered.

• Power Range: 450W~550W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• 2 x MOPP Compliance• IEC/EN60601-1, IEC/EN62368-1 Compliance

• Gallium Nitride Based Design
• LED Indicator (optional)
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI or CoC Tier II
• No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)
• MTBF > 100,000 hours
• Safety: Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2),
UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035)
• All models meet RoHS and WEEE

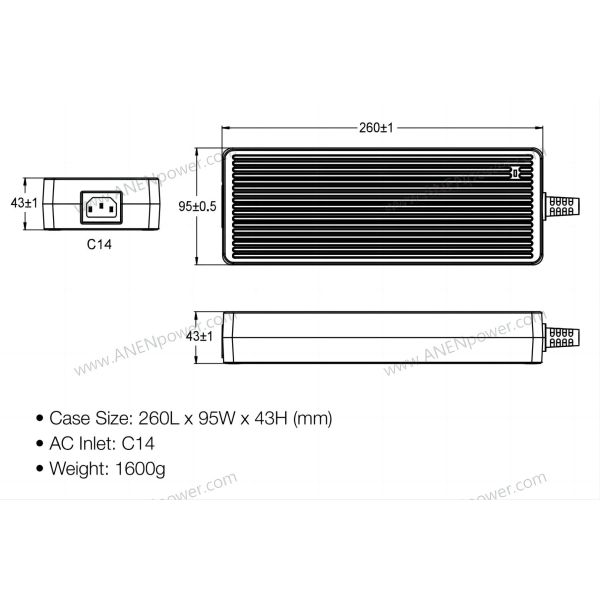

• Dimension(L x W x H): 260L x 95W x 43H (mm)
• Weight: 1600g

MODEL No.Max. Output Power (W)Output Voltage (vo)Min.Load (io)Max. Load (io)Load RegulationLine RegulationRipple& Noise
APM450A450W19V~24V0A18.65A±5%±1%360mV
APM450B450W28V~36V0A16.07A±5%±1%540mV
APM450C450W48V~56V0A9.37A±5%±1%840mV
APM450D550W36V~42V0A15.27A±5%±1%540mV
APM450E550W48V~56V0A11.45A±5%±1%840mV

2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply

























Wholesale 2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply from china suppliers

2 x MOPP, IEC/EN60601-1 Compliance 450W~550W 36V 48V 56V Medical Grade Switching Power Supply Images
